The LuxMed MedRover Pro ♿ ADA Friendly Swivel Deluxe chairs is a new design with many new amazing features!

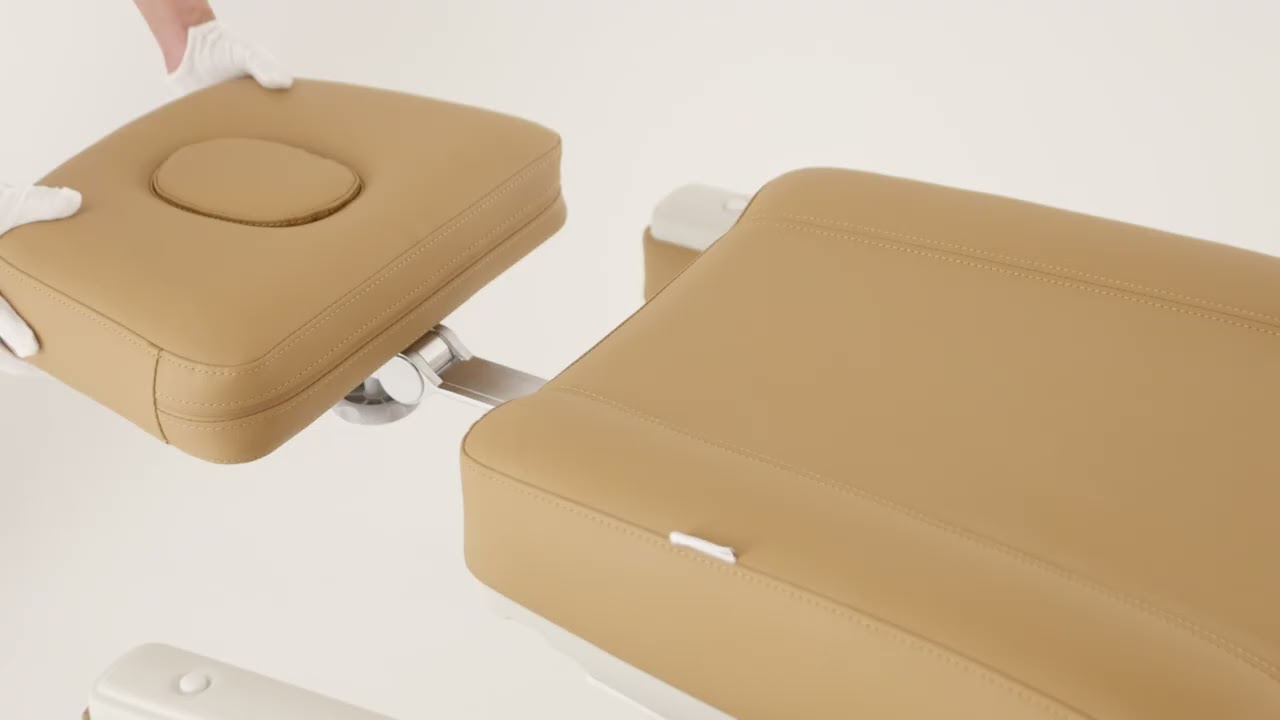

It comes with 4 motors that control the height, backrest, seat inclination, as well as the footrest. The armrest are flat and reversible for maximum comfort. All the cushions can be swapped out easily in case of excessive wear or accidental staining to tears. The bed can sit at a 90° angle and can also lay flat, perfect for treatments.The headrest has a removable cushion + a removable cloud pillow that reveals a facial hole and is also now 25% bigger! The bed can rotate bidirectionally 240° and the base is designed to allow room for the feet of the caregiver to be that much closer to the chair (and not hit the base), in turn enhancing the precision of care. The MedRover Pro also is able to be rolled around the office by deploying our proprietary foot lever system for maximum versatility.
Core Functions:
• Motors: 4
• Swivel: Yes
• Backrest Raise & Footrest Drop Angle: Both @ 90' Degrees
• Total Rotation Range: 240° total / 120° in either direction
• Goes 100% Flat: Yes
• Emergency Shutoff: Yes
• Headrest Pillow Included: Yes
• Full Mobility / Caster System: Yes
• Removable & Replaceable Cushions: Yes
• Installation: 2 persons
• Trendelenburg Tilt: Yes (14 degrees)
•
| UL Recognized Motors
Controls & Functions
• Included Factory Controller: Side switches + hand remote control
• Foot controller: Optional Purchase
• Reset Function: Yes — press and hold for 3 seconds
• Programmable Memory Presets: Yes — 3 memory positions with the hand controller
• Removable Headrest & Armrests: Yes
• Emergency Stop: Yes
• Upgraded Rotation Mechanism with Ergonomic Handle: Yes
• Click HERE for video of our "Standard Colors"
Dimensions:
• Headrest: 11.8" wide × 12.6" long at the shortest position / 16.5" long at the longest position
• Width With Armrests: 29.3"
• Width Without Armrests: 22.0"
• Length When Laying Flat: 72.8"
• Height Range: 19"–34" ♿ ADA Friendly
• Product Size: 72.8" L × 29.3" W × 20"–34" H
• Packing Size: 54.3" L × 25.0" W × 23.6" H
• Leg-rest / Foot-rest Extension: 5.9"
• Headrest Extension: 5.9"
BASE:
• Base Length: 40.2"
• Front Width: 22.8"
• Rear Width: 22.8"
• Narrowest / Middle Width: 17.7"
Weight & Load Capacity:
• N.W.: 190 lbs
• G.W.: 220 lbs
• Rated Lifting Load: 450 lbs
Electrical
• Voltage: AC 100–120V
• Frequency: 50/60Hz
• Max. Input Power: 360W
• Calculated Input Current: approx. 3.0–3.6A across 100–120V AC
• Control Box Output: DC 24V @ Max. 5.6A
- Note: Some Images Are Mirrored & Measurements Are Approximate
- Note: The "Mobility" function is designed to be used without the patient sitting in the chair & only on smooth surfaces such as tile, laminate, or smooth marble flooring.
- Note: The video displays the starting height @ 20". That measurement is from the side bolsters. The middle of the seat area starts @ 19" from the ground once seated.
** Click HERE To Download The User Manual For The MedRover Pro
